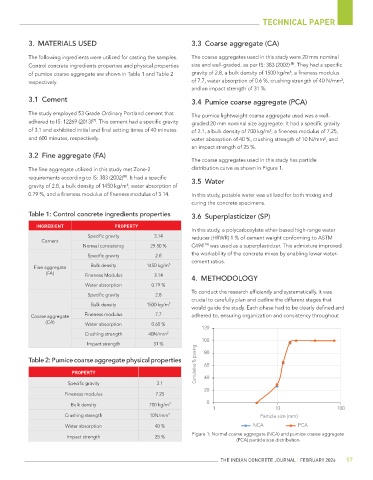

Page 6 - ICJ Feb Openaccess 2026

TECHNICAL PAPER

3. MATERIALS USED 3.3 Coarse aggregate (CA)

The following ingredients were utilized for casting the samples. The coarse aggregates used in this study were 20 mm nominal
[8]
Control concrete ingredients properties and physical properties size and well-graded, as per IS: 383 (2002) . They had a specific
of pumice coarse aggregate are shown in Table 1 and Table 2 gravity of 2.8, a bulk density of 1500 kg/m³, a fineness modulus
respectively. of 7.7, water absorption of 0.6 %, crushing strength of 40 N/mm²,
and an impact strength of 31 %.
3.1 Cement 3.4 Pumice coarse aggregate (PCA)

The study employed 53 Grade Ordinary Portland cement that The pumice lightweight coarse aggregate used was a well-
adhered to IS: 12269 (2013) . This cement had a specific gravity graded 20 mm nominal size aggregate. It had a specific gravity
[7]
of 3.1 and exhibited initial and final setting times of 40 minutes of 2.1, a bulk density of 700 kg/m³, a fineness modulus of 7.25,
and 600 minutes, respectively. water absorption of 40 %, crushing strength of 10 N/mm², and
an impact strength of 25 %.
3.2 Fine aggregate (FA)
The coarse aggregates used in this study has particle
The fine aggregate utilized in this study met Zone-2 distribution curve as shown in Figure 1.
requirements according to IS: 383 (2002) . It had a specific
[8]
3.5 Water
gravity of 2.8, a bulk density of 1450 kg/m³, water absorption of
0.79 %, and a fineness modulus of fineness modulus of 3.14. In this study, potable water was utilized for both mixing and
curing the concrete specimens.
Table 1: Control concrete ingredients properties
3.6 Superplasticizer (SP)
INGREDIENT PROPERTY
In this study, a polycarboxylate ether-based high-range water
Specific gravity 3.14 reducer (HRWR) 1 % of cement weight conforming to ASTM
Cement
[14]
Normal consistency 29.50 % C494 was used as a superplasticizer. This admixture improved
Specific gravity 2.8 the workability of the concrete mixes by enabling lower water-
cement ratios.
3
Fine aggregate Bulk density 1450 kg/m
(FA) Fineness Modulus 3.14
4. METHODOLOGY
Water absorption 0.79 %
To conduct the research efficiently and systematically, it was
Specific gravity 2.8
crucial to carefully plan and outline the different stages that
Bulk density 1500 kg/m 3
would guide the study. Each phase had to be clearly defined and
Coarse aggregate Fineness modulus 7.7 adhered to, ensuring organization and consistency throughout
(CA) Water absorption 0.60 %
120
Crushing strength 40N/mm 2
100
Impact strength 31 %
Cumulative % passing 60
Table 2: Pumice coarse aggregate physical properties 80

PROPERTY 40
Specific gravity 2.1
20
Fineness modulus 7.25
0
Bulk density 700 kg/m 3
1 10 100
Crushing strength 10N/mm 2 Particle size (mm)
Water absorption 40 % NCA PCA
Figure 1: Normal coarse aggregate (NCA) and pumice coarse aggregate
Impact strength 25 %
(PCA) particle size distribution

THE INDIAN CONCRETE JOURNAL | FEBRUARY 2026 57
